Heat Diffuser for a Titanium Pan on a Gas Stove

You don't need a heat diffuser for a titanium pan on a gas stove for most of what you cook. A flame sized to the pan's base heats titanium evenly enough for eggs, searing, sauces and stir-fries. Keep a diffuser on hand for long, low simmers of milk, rice or chocolate, where the smallest burner setting still runs hot.

Titanium carries heat at roughly 22 watts per meter-kelvin, close to stainless steel and about a tenth of what aluminum manages. The shape of your flame therefore prints itself on the pan while it warms up. A burner ring that sits inside the base edge spreads that heat across the whole cooking surface on its own, and the pan answers a change in the dial within seconds.

The short version

Because titanium moves heat sideways at roughly 22 watts per meter-kelvin, the width of the burner ring under the pan matters more than anything you put between the two.

• Keep the flame tips inside the base edge and off the sidewalls.
• Use a diffuser only for long low simmers like milk, rice or melted chocolate.
• A cast iron diffuser adds roughly 3 to 5 minutes going up and coming down.
• Match the pan to the burner first: an 8 inch pan parked on a 12,000 BTU power burner is the pairing a plate actually fixes.
• Let a hot pan cool on the burner, never under running cold water.

Do you need a heat diffuser for a titanium pan on gas?

For everyday cooking on a home range, the burner dial already does the job that a flat plate was invented to do. A diffuser is a slab of cast iron, aluminum or perforated steel that sits between the flame and the pot, soaking up a concentrated ring of fire and handing it back as broad, gentle heat. It was made for cookware that cracks or scorches over a naked flame: glazed clay, glass, thin enameled steel, moka pots. Titanium belongs to a different group. PubChem's element data for titanium, published by the U.S. National Library of Medicine, lists a melting point near 3,034°F and a density of about 4.5 g/cm³, roughly half that of stainless steel, so a burner running 7,000 to 12,000 BTU is nowhere near the metal's limits.

The plate never touches your food either. EFSA's topic page on metals as contaminants in food treats food contact materials as one route metals reach the diet, and the European Food Safety Authority applies that to the surface you cook on rather than a disc sitting under the pan, which is the same reasoning behind the question of whether titanium cookware contains cadmium. Eggs are happiest near 300°F and a proper sear wants 400°F or more, and those cooking temperatures on a titanium pan are set by how far you turn the knob. The same goes for doneness: the U.S. Department of Agriculture puts the safe internal temperature at 145°F for fish and whole cuts of pork or beef and 165°F for poultry, and the dial gets you there without anything under the pan.

How titanium reacts to a gas flame

A thin base changes temperature quickly in both directions, and that is the behavior to plan around on gas. Most titanium pans measure 1.5 to 3 mm at the base. Lift one off the flame and it starts cooling within seconds, which helps when a pan sauce is about to break and works against you when you want a long unattended hold.

When we preheat a 10-inch pan over a medium flame, a teaspoon of oil thins into a visible ring at about the two minute mark, tracing the burner underneath, then spreads flat across the base as the metal catches up. I flicked water onto that dry pan on our own range and the drops beaded and skittered across it at a minute forty, then stopped hissing within about twenty seconds of my sliding the pan off the flame. That ring is a true picture of what your burner is doing under there. Watch it once on your own stove and you'll know whether your flame runs wider than the pan you reach for most.

Heat travels sideways through titanium slowly, so the pattern stays visible longer than it would in an aluminum pan and fades once the whole base is up to temperature. A lid speeds that up. So does starting on medium, because a high flame widens the ring before the base has any chance to share it.

When a flame tamer earns its place

A plate pays off when the task is holding a low, steady temperature for a long stretch with very little stirring. These are the jobs where a thin base can scorch food before you smell it:

• Milk, cream or tomato sauce held under a boil for 30 minutes or more
• Rice or grains left covered and untouched for 18 minutes
• Chocolate or a custard held near 115°F
• A small pan parked on a wide power burner whose flame reaches past the base edge
• A burner whose lowest stable setting still boils water hard

What you give up is response time. Cast iron stores a lot of heat, so turning the flame down stops meaning much; the pan keeps receiving whatever the plate already absorbed for several minutes afterward. That makes a diffuser a poor partner for eggs, fish, garlic and anything you correct by feel. Keep one in the drawer for the two or three dishes that need it and cook everything else straight on the grate.

Diffuser vs a lower flame for hot spots

Lowering the flame solves more hot spots on a gas range than any plate does, and it costs nothing. Both approaches attack the same thing: a burner ring concentrating heat in a circle narrower than your food.

Approach	What it does to the heat	Response time	Best for
Flame kept inside the base edge	Puts the burner ring under the middle of the cooking surface	Immediate	Eggs, searing, stir-fry, pan sauces
Cast iron diffuser, about 6 mm thick	Absorbs the flame and re-radiates it flat	Adds 3 to 5 minutes up and down	Dairy, long braises, tempering
Perforated steel simmer ring	Breaks up direct flame contact and lets some heat through	Adds a short lag	Holding a pot at a bare simmer
Smaller burner	Narrows the flame ring under the pan	Immediate	6 to 8 inch pans and small saucepans
Double boiler over simmering water	Caps the pan at the boiling point of the water below it	Slow to climb, very hard to overshoot	Chocolate, custard, anything held near 115°F

A flame that laps up the sidewall is heating air and the handle, and it parks the hottest band right at the edge of the pan where food sits thinnest. Dropping to medium usually pulls that band back under the food before the oil has moved. If your pan still heats in a narrow stripe after that, the pan is wider than the burner can cover, and a plate is the honest fix for that pairing.

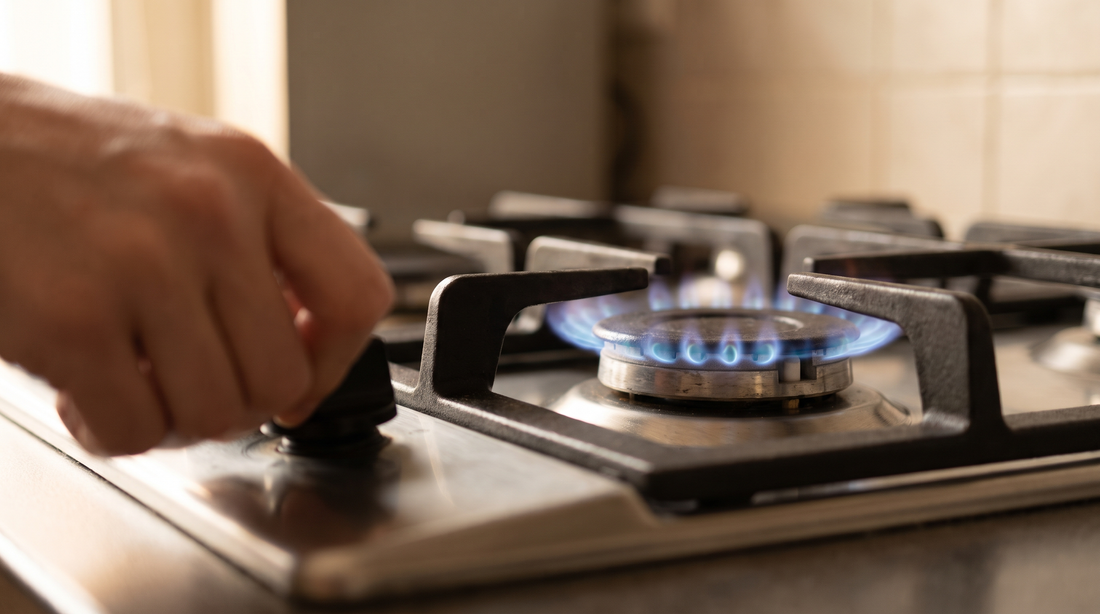

How to size the flame on a gas burner

Getting this right takes about fifteen seconds at the start of cooking, and it prevents the scorching that sends people shopping for plates.

1. Set the dry pan on the grate and light the burner at its lowest setting.
2. Raise the flame until the tips sit about half an inch inside the base edge.
3. Wait until a flicked drop of water beads and skitters across the surface.
4. Add oil, tilt to coat, and watch where the shimmer starts.
5. Drop the flame one notch before the food goes in.

Flames that climb the sides push heat straight into the grip, which is worth knowing if you cook with the handle angled over a neighboring burner; here is what to expect from titanium pan handles and heat. Oil goes in once the pan is warm, and a titanium surface takes far less than most people pour. Our note on using oil in a titanium pan covers how thin that film can be.

Why titanium pans warp on gas and how to prevent it

A base bends when one part of it expands faster than the metal beside it, and cold water hitting a hot pan is the usual trigger. The second trigger is a high flame under an empty pan while you finish chopping, which concentrates all that energy in a ring a few inches across with no food or liquid to carry it outward.

Prevention is dull and it works. Preheat on medium, not high. Get the oil or food in once the pan is warm. When you're done, slide the pan off the burner and let it sit five minutes before it goes near the tap. Deglazing a hot pan with room-temperature stock is fine, since the liquid covers the entire base in one go.

Center the pan on the grate too. A pan sitting off to one side takes the flame on one arc of the base for the whole cook. A base that has already gone convex will rock on the grate and pool oil at the rim, and no diffuser corrects that; the plate just hides the symptom for a while.

FAQ

Can you use a cast iron heat diffuser with a titanium pan?

Yes, and there is nothing between cast iron and titanium that reacts at cooking temperatures. The trade is response: a thick plate keeps feeding heat to the pan after you turn the flame down. Expect gray marks or soot on the underside of the pan after a few uses, which come off with dish soap and a scrub pad.

Will a gas flame damage a titanium pan?

A gas burner will not harm the metal. What a bare flame does is push the base past the smoke point of your oil in a hurry and leave a gold or blue tint on the outside of the pan. That tint is the oxide layer titanium forms on its own, and it is cosmetic. White vinegar on a soft pad fades most of it.

Do you need a diffuser on an electric or induction cooktop?

No. A radiant coil and a glass-ceramic element already spread heat across a wide circle, and induction puts energy directly into the base of the pan, where a steel plate in between would absorb it and waste most of it. Flat contact matters far more on those cooktops; our guide to a titanium pan on a ceramic stove covers what to check.

What can I use instead of a heat diffuser?

Move the pan to your smallest burner and drop the flame until it sits well inside the base, then cover it. For chocolate or custard, set the pan over a saucepan of barely simmering water and skip the direct flame. Shifting the pan slightly off center also pulls the hottest spot away from where the food sits.

Try a week on the flame alone first

Before you buy hardware, cook for a week with the flame tucked inside the base edge and see whether anything still scorches. Write down the dish that burned, the burner it sat on and where the dial was, because that list usually shrinks to one or two long simmers such as rice or a milk-based sauce. If two dishes do it, one plate handles them and stays in the drawer the rest of the time. For a flat base that sits square on a grate, the pure titanium cookware range covers pans, pots and woks in the sizes standard burners were built around.
